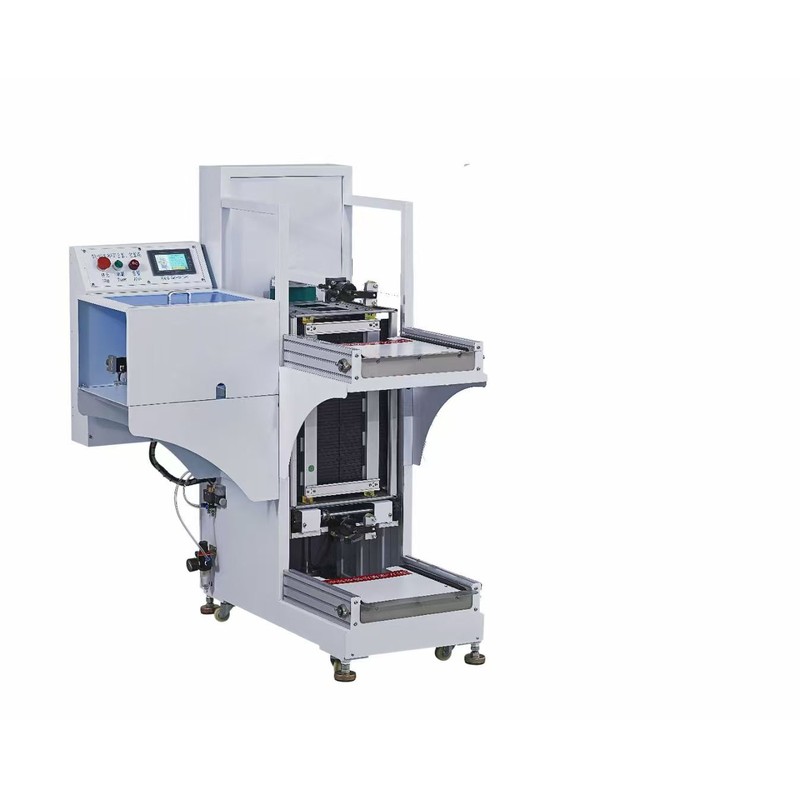

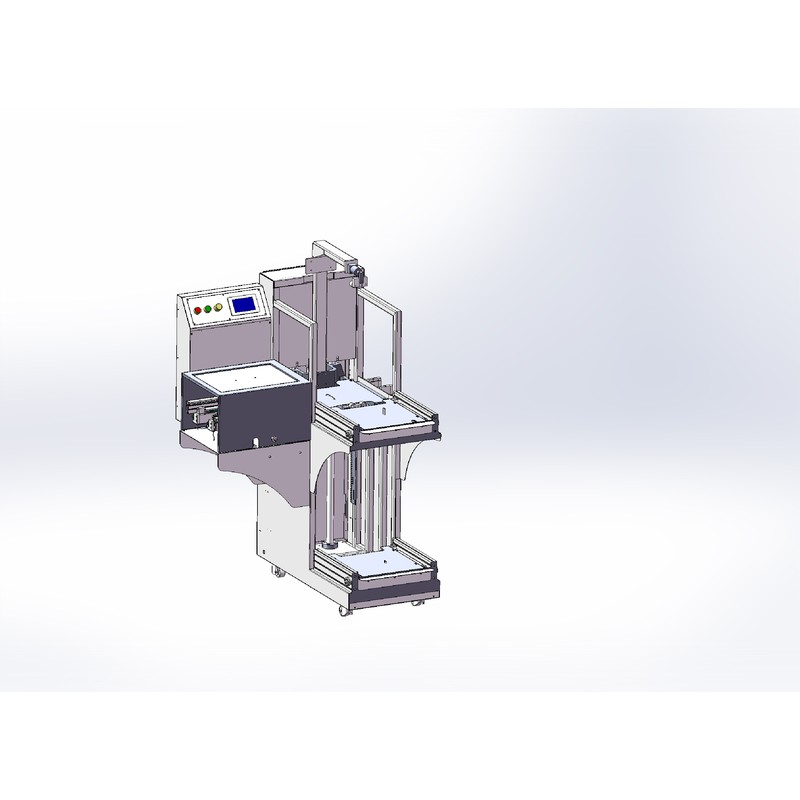

Supports 250 and 330 magazine sizes. The L-shape design significantly reduces footprint compared to inline loaders. Left-to-right and right-to-left configurations form a complete loading set. Can also be reconfigured as an unloader at the end of the SMT line, receiving PCBs back into the magazine. Motor-driven loading with controlled, gentle push force — no risk of board damage from pneumatic impact.
Design
Finished
Frameless magazine-free design — add PCBs anytime without stopping to swap magazines. The smallest footprint in its class, ideal for tight production floors. Handles double-sided boards and tall-component PCBs by adjusting the motor rotation rhythm. No magazine means no magazine-related jams or alignment issues.
Design
Finished

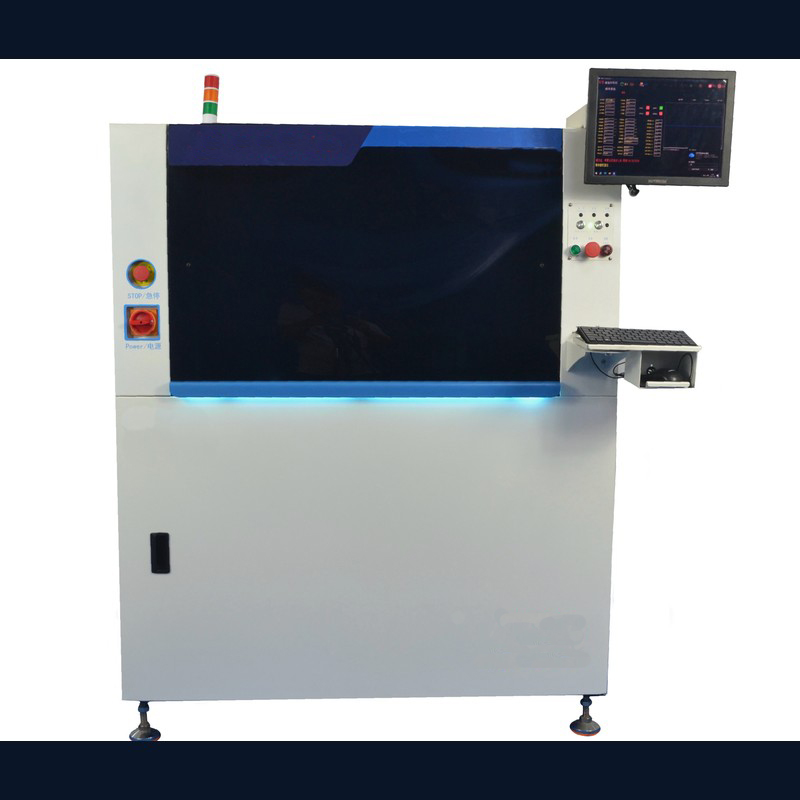

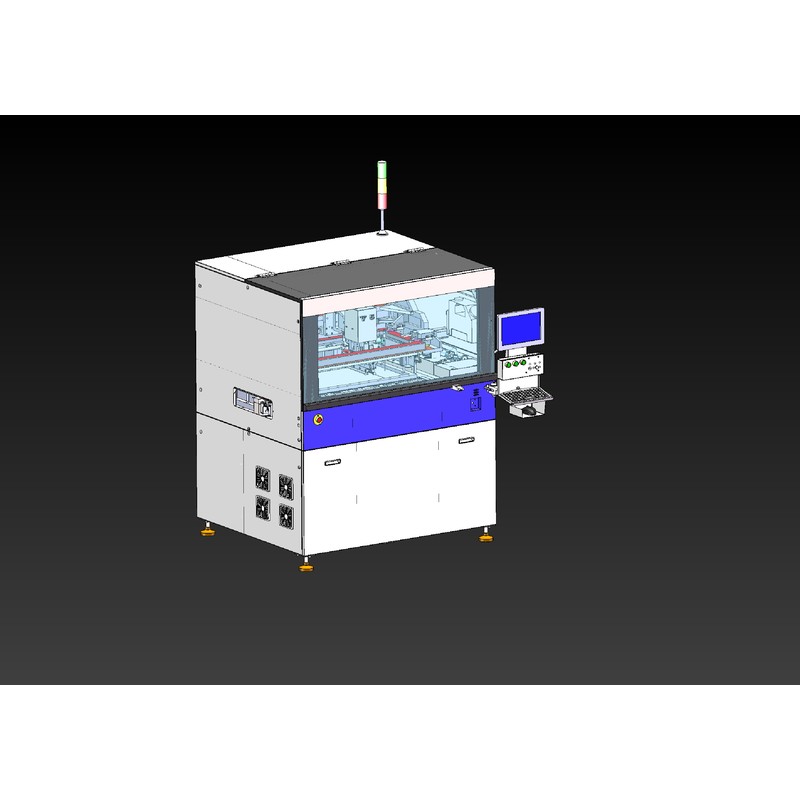

Built-in high-precision CCD vision system with Mark point recognition on both PCB and stencil for automatic alignment. Key innovation: the PCB remains stationary while the stencil moves — this means the PCB guide rails never interfere with adjacent equipment, no return-to-origin wait time, and faster overall cycle speed. Repeat positioning accuracy of ±0.025mm or better, capable of handling 03015 micro-component printing. One of the most critical pieces of equipment at the front of any SMT production line.
Design
Finished

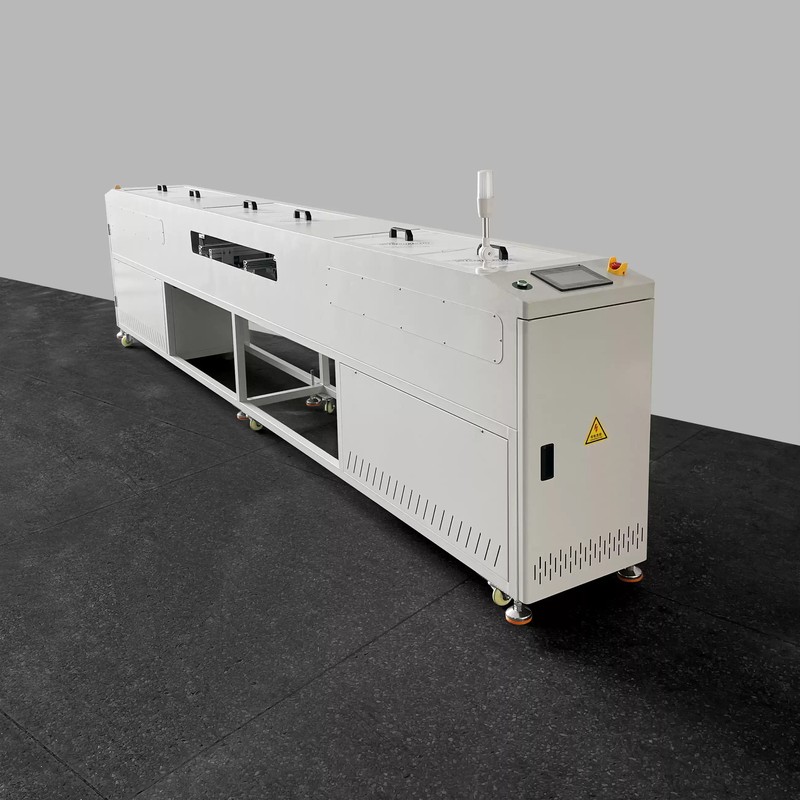

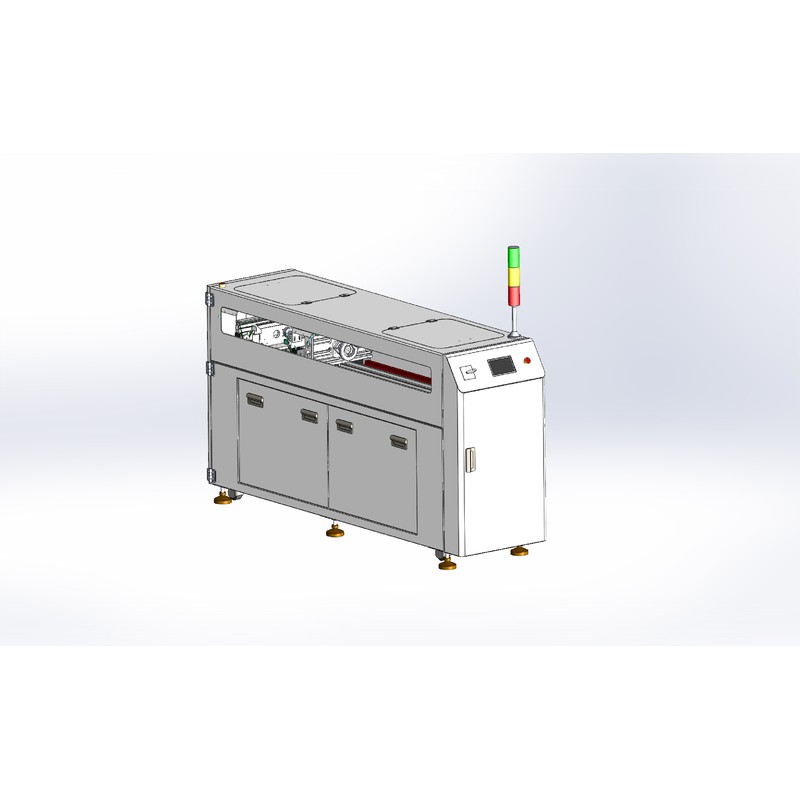

Merges PCBs from two or more SMT lines into a single reflow oven in sequence — balancing the speed gap between fast pick-and-place machines and the slower reflow process. Available in single-rail (automatic width adjustment for mixed PCB sizes) and dual-rail shuttle configurations. Maximizes reflow oven utilization and overall line throughput.
